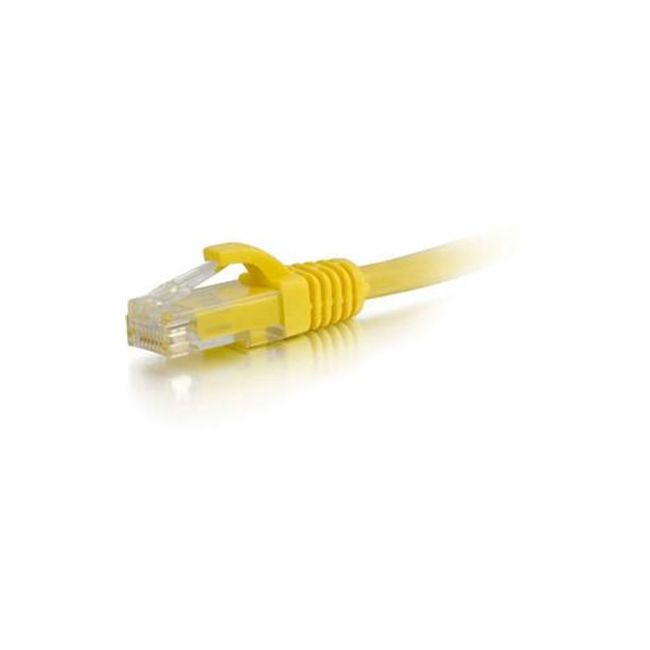

C2G 20' CAT6 SNAGLESS UTP CBL YLW

20' CAT6 SNAGLESS UTP CBL YLW - For fast Ethernet and Gigabit computer networks that require band width-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snaggles boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation. Features and Benefits snaggles design protects clips when plugging and unplugging Standard RJ45 connectors and unshielded twisted pair wires Available in 10 colors to color-code a network Available in lengths up to 150ft Additional Technical Specifications Electrical Characteristics Conductor DC Resistance - 9.38 100m (maximum) Impedance ? 100 Capacitance - 5600pf/100m Propagation Delay - 545ns/100m (maximum) Delay Skew - 45ns/100m (maximum) Physical Characteristics Wiring Scheme - T568B Standard: Category 6 TIA/EIA-568-B-2.1, draft 9 Connector: 50 micron gold-plated RJ45 Temperature Rating - 60 C Voltage Rating - 30V Approvals - RoHS Compliant Warranty Lifetime Package Type Polybag Conductor (Qty. 4 twisted pair) Conductor Type - 24AWG (7/0.20), Stranded Bare Copper Insulation - H-D PE Diameter - 0.98 0.05mm Colors - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White Connector Type (Qty. 2) Connector Type - 8P8C (RJ45) Gender Male Connector Material Polycarbonate Contact Material - Copper Alloy, Gold Plating - 50 m Hood Material - Molded PVC.
